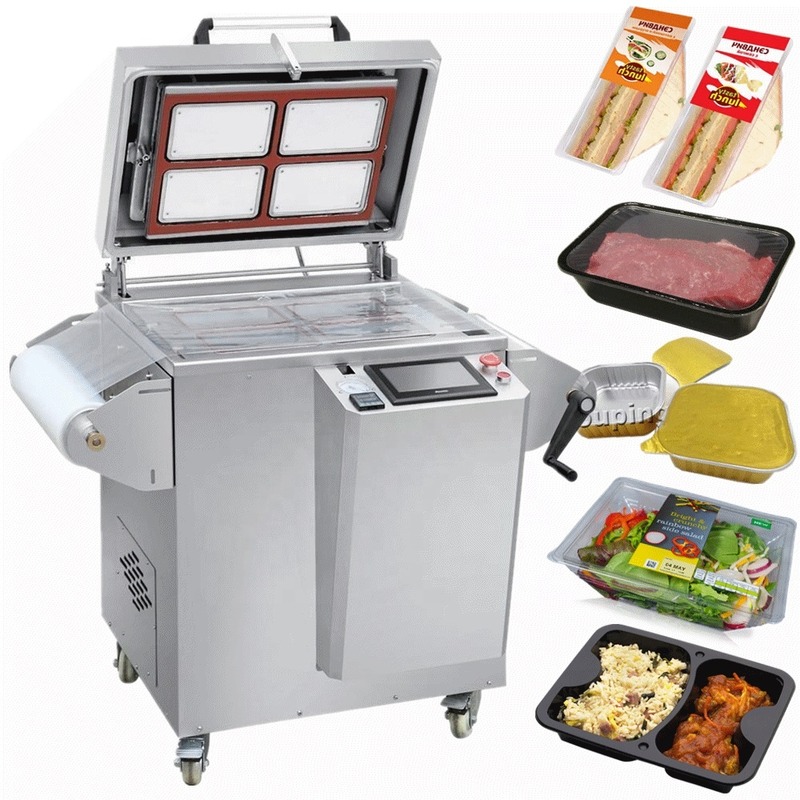

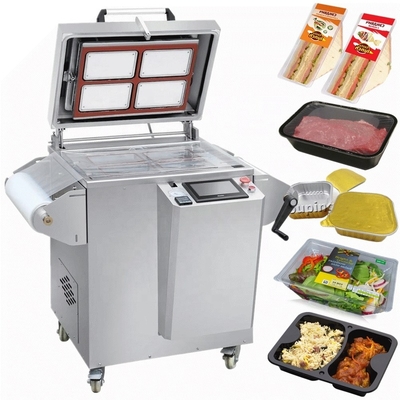

MAP 400 modified atmosphere packaging vacuum sealer tray sealing machine food gas flushing

1 Piece
MOQ
$4,652.00(>=1 Pieces)
Price
MAP 400 modified atmosphere packaging vacuum sealer tray sealing machine food gas flushing
Features Gallery Product Description Request A Quote
Features
Specifications
Type: SEALING MACHINE
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops
Showroom Location: None
Condition: New
Application: Beverage, Food, Commodity, Cooked Food, Fresh Meat/fish, Sandwich, Fruit
Packaging Type: Bags, Case, Film, Foil, Stand-up Pouch, Pouch, Trays
Packaging Material: Plastic, Aluminium Foil
Automatic Grade: Semi-automatic
Driven Type: Electric
Voltage: 110V/220V/380V
Dimension(L*W*H): As Per Detail Description
Weight: KG
Warranty: 1 Year
Key Selling Points: Vacuum, Gases Mixing Then Fill, Seal
Marketing Type: New Product 2020
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor, Pump
Max Speed: 2-12 Trays Per Minute
Function 1: Vacuum, Gases Mix And Fill, Seal
Function 2: Vacuum, Nitrogen Fill, Seal
Usage: Keep Food Fresh And Extend Shelf Life
Packing Mold: Customized As Per Tray Sample
Multi Mold: Max 2 Molds
Multi Purpose: Trays And Bags
Language: English/Chinese
Controller: PLC+controller
Product Name: Tray Sealing Machine
Keyword: Modified Atmosphere Packaging
Basic Infomation
Payment & Shipping Terms
Packaging Details: export wooden carton
Supply Ability: 50 Unit/Units per Month
Product Description
Advantage
* Support modified atmosphere packaging
* Ratio of O2/N2/CO2 can be changed as per food
* Prelong shelf life, remain fresh and taste of food
* Multipurpose. Able to pack both bag and trays.
* Multi molds. Able to pack different tray size/shape.
* Customized mold as per client tray
* Automatic film cut
* Resonable price
* Easy for maintain and operate
Application
1. Suitable item. Food item like ready meal, meat, fish, sausage, cheese, fruit, vegetables, tofu, salad, sandwich, cooked food etc.
2. Tray size. Machines are customized accordingly to client tray size/shape. Above is just for reference.
3. Package type. Our machine can support both tray+film and bags. Standard machine only support tray+film, bag packing cost extra.
4. Package material. Trays or bags made from PP / PET/ Aluminium foil.
Parameter and price
Model
DMP-430A
DMP-430B
Gas mixer
Trays size
Tray size not fixed. Machine customized as per client tray
Tray depth
70mm standard deepth
Trays per cycle
1-6 trays at the same time
Pack speed
About 2 cycles per minute
Air compressor
Require an air compressor, client prepare it
Air pressure
0.6-0.8Mpa
Power
3.5KW
2.5KW
1KW
Voltage
380V/50HZ/3Phase
220V/50HZ/1phase
Vacuum pump
ZD brand vacuum pump 63m3/h
Gas source pressure
0.2-0.3Mpa
0.2-0.3Mpa
Controller
PLC + Touch screen
Material
Food grade 304 stainless steel
Overall size
1050*720*940mm
700*600*555mm
Net weight
313Kg
245Kg
68Kg
Function
Vacuum, gases mixing and filling, sealing
Vacuum, gas filling, sealing
Premix for gases O2+CO2+N2
Unit price
5968USD
4652USD
1400USD
* Gas mixer can premix O2/CO2/N2 as per ratio which preset by client.
* DMP-430A is actually for tray sealer DMP-430B + Gas mixer.
* Above price do not include air compressor. It cost additional 400USD .
* We can customize wider/deeper chamber, with extra 200USD. if client has big or deep tray. Tray depth can be maxi 120mm.
* Voltage can be customized as required.
* Above price include one mold. Additional cost 600USD each extra mold. The machine support maxi 3 molds. Each tray size/shape require one mold.
* The machine can also pack bags with gas fill, cost extra 300USD
* If client order more than 3pcs, there will be discount.
Machine details

HMI touch screen

It's easy to set parameters.
Usually it's English for export machine.
---------------------------------------------------------------------

Vacuum meter

It's stable, precise, and fast response.
-------------------------------------------------

Scrap gather handle

Turn handle to gather film scrap. It's easy to remove scrap off the support.
---------------------------------------------------

Emergency stop

Once press it, the machine stop immediately, and the cover open.
---------------------------------------------------

Leackage protect

If there's any short circuit or slight power leackage, it will jump and cut off power.
-------------------------------------------------

Brakeable caster

Machine can move easily with it.
Press the brake, the machine will be fixed well.
---------------------------------------------------
Why Choose Us
How the machine work for MAP?
The machine will remove air from tray, then fill modified gas into tray, and seal cover film. Whole process happens in a closed chamber.

Oxygen gas (O2). It keep fresh cell sleep but still alive.
Carbon Dioxide gas（CO2）. Inhibit the growth of aerobic bacteria.
Nitrogen gas (N2). Does not have special function. Nitrogen gas fill after vacuum, it protect good tray shape under atmospheric pressure.
--------------------------------------------------------------------------------------------------------------------------------------
Multi purpose. Pack both tray and bags
The machine can pack both trays and bags.

Trays. The tray size/shape not fixed. Machine is customized as per client trays.
Bags. Just remove tray mold, and put another heat/seal unit for bag packing. Cost extra 300USD if need this.
--------------------------------------------------------------------------------------------------------------------------------------
How to change molds?
It can support maxi three molds each machine. It is easy to change. Please check video at link of https://youtu.be/vNIXhaQ16hs
-----------------------------------------------------------------------------------------------------------------------------------------
Gas mixer set
Gas mixer is an seperate machine. It is easy to preset or change the gases ratio.
Gas mixer share same PLC with tray sealer, so gas mixer can't work with other machines.
The input pressure of gas source shall be less than 0.3Mba.
About our factory
Since our founding in year 1985, we focus on wide ranges of vacuum packing machines.
If you have any question to discuss! Please contact us.
Export manager: Emma Xu
Wechat/whatsapp: 008615057546776
Email: emma.vac(at)cnruibao.cn
How to get quotation and process order
What information from client is neccessory for correct quotation?
1. What is your tray size?
2. Which function do you need?
* Function 1. vacuum+O2/N2/CO2 mixing and filling+seal
* Function 2. Vacuum+nitrogen fill+seal
* Function 3. Seal directly without vacuum or nitronge filling.
Does client need send samples?
Yes. We need sample before and after get machine ready.
* Before production. Require tray sample and its drawing, so that to customize mold.
* After machine ready. If client can send at least 100pcs trays+film sample for each tray size, we will test and adjust machine, so that to make sure machine is under good condition and it parameter set ready set for your trays. This is important to handle before shipment.
Shipment term?
1. We ship under FOB or CIF by sea usually.
2. If client require DDP or DDU, please offer details address, we will offer accordinlgy.
Payment?
40% prepayment before production, balance before shipment.
* We will advice minimun film width after prepayment.
* After factory test the machine, we offer running video and picture for confirm. Then client arrange balance.
Lead time?
After prepayment, and getting tray sample/drawing, it need about 30days.
Do you test machine before shipment?
We will test machine and make sure machine under good condition before shipment.
After sale service?
If there's any problem, just offer videos, pictures of all touch screen pages, we will study and guide online. Usually problem can be solved this way.
If neccessory, our engineer is ready to fly oversea.
