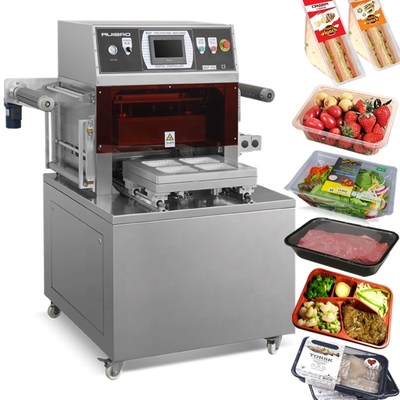

Factory supply semi automatic map tray sealing machine vacuum packing tray sealer nitrogen flush for sausage fish meat sandwich

1 Piece
MOQ
$8,462.00(>=1 Pieces)
Price
Factory supply semi automatic map tray sealing machine vacuum packing tray sealer nitrogen flush for sausage fish meat sandwich
Features Gallery Product Description Request A Quote
Features
Specifications
Type: SEALING MACHINE
Applicable Industries: Hotels, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Food & Beverage Shops
Showroom Location: Canada, United States, France, Viet Nam, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, T
Condition: New
Application: Beverage, Food, Fruit, Vegetables, Cooked Food, Sea Food, Ready Meal, Salad
Packaging Type: CANS, Case, Foil, Trays
Packaging Material: Plastic, Paper, Aluminum Foil, PLA
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220V/240V/380V/450V
Dimension(L*W*H): 1365*1080*1570mm
Weight: 430 KG
Warranty: 1 Year
Key Selling Points: Modified Atmosphere Packing
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year
Core Components: PLC, Motor, Engine, Pump
Max Speed: 2-12trays/min
Language: English
Training Video: Seller Offer It
Gas Filling: Gases Mixing And Fill
Multi Mold: Maxi 2 Molds
Open Aid Corner: Avaliable
Product Name: Vacuum Packing Tray
Keyword: Map Tray Sealing Machine Vacuum Packing
Function: Map Tray Sealing Machine
Material: 304 Stainless Steel
Speed: 3-15trays/min
Basic Infomation
Payment & Shipping Terms
Packaging Details: export wooden carton
Supply Ability: 30 Set/Sets per Month
Product Description
Advantage
* Indivdually built for your trays * Automatic film feeding, more sanitary
* Prelong shelf life of ready meal
* Support modified atmosphere packaging
* Ratio of O2/N2/CO2 can be changed as per food
* Prelong shelf life, remain fresh and taste of food
* Multi molds. Able to pack different tray size/shape.
* Customized mold as per client tray
* Easy for maintain and operate
Factory supply semi automatic map tray sealing machine vacuum packing tray sealer nitrogen flush for sausage fish meat sandwich
Application
1. Suitable item. Food item like ready meal, meat, fish, sausage, cheese, fruit, vegetables, tofu, salad, sandwich, pizza, cooked food etc.
2. Tray size. Machines are customized accordingly to client tray size/shape. Above is just for reference.
3. Package type. Our machine can support tray+film. Opening aid corner is optional, with extra 150USD.
4. Package material. Trays made from PP / PET/ Aluminium foil.
Parameter
Model
MPA-450A
MPA-450B
Voltage
380V/50HZ/3phase or customized
Controller
IDEC PLC + Weinview touch screen
Vacuum pump
Chinese top brand ZD vacuum pump 63m3/h from German
Vacuum degree
Maxi 0.1Mba
Material
Mainly food grade 304SS
Tooling
Include 1 tooling for one tray design. It is customized
Packing capacity
About 3 cycles per minute
Overall size
1350*1050*1650mm
Weight
About 450KG
Gas source pressure
0.2-0.3Mpa
Power consumption
About 5KW
Certificate
CE
Guarantee
1 year
Language
English/Chinese/Spain for option
Air compressor
Not include in the price. The air pressure shall be about 0.6-0.8Mpa
Gas mixer
Include one inside the machine
Exclude
Function
Vacuum, O2/N2/CO2 mix and fill, seal
Vacuum, nitrogen fill, seal
Unit price
9382USD
8462USD
* Client can change gases ratio on touch screen as need.
* Above price do not include air compressor. It cost additional 600USD .
* We can customize wider/deeper chamber, with extra 300USD. if client has big or deep tray. Tray depth can be maxi 120mm.
* Voltage can be customized as required.
* Above price include one mold. Additional cost 1200USD each extra mold. The machine support maxi 3 molds. Each tray size/shape require one mold.
* If client order more than 3pcs, there will be discount.
Our machine and others

Automatic film feeding

It feed film automatically.
Film roll diameter maxi 350mm.

----------------------------------------------------

HMI touch screen

It's easy to set parameters.
Usually it's English for export.

----------------------------------------------------

Emergency stop

Once press it, the machine stop immediately, and the cover open.

---------------------------------------------------

Tray mold

It supports maxi 3 molds in one machine. It jacks trays up after packing, so that user can take trays easily.

Vacuum meter

If there's any short circuit or slight power leackage, it will jump and cut off power.

Brakeable caster

Machine can move easily with it. Press the brake, the machine will be fixed well.
Why Choose Us
How the machine work for MAP?
The machine will remove air from tray, then fill modified gas into tray, and seal cover film. Whole process happens in a closed chamber.

Oxygen gas (O2). It keep fresh cell sleep but still alive.
Carbon Dioxide gas（CO2）. Inhibit the growth of aerobic bacteria.
Nitrogen gas (N2). Does not have special function. Nitrogen gas fill after vacuum, it protect good tray shape under atmospheric pressure.
----------------------------------------------------------------------------------------------------------------------------------------------------------------
How to change molds?
It can support maxi three molds each machine. It is easy to change. Please check video at link of https://youtu.be/FY4L6sJS_ys
-------------------------------------------------------------------------------------------------------------------------------------------------------------
How to set touch screen
* We leave different holes for gases on tray sealer. Please connect them with gas source directly. Inflow gas pressure shall be 0.2-0.3Mpa.
* User can adjust gases ratio on touch screen.
* The gas mixer will mix gases and store them in another cylinder inside machine.
* The machine will automatically fill gas once inside gas less than a certain level.
* The touch screen will alarm for insufficient gas source inflow.
* Time for vacuum/gas fill/seal can be adjusted also. If want to close some function, just set the time "0".
About our factory
Since our founding in year 1985, we focus on wide ranges of vacuum packing machines.
If you have any question to discuss! Please contact us.
Export manager: Emma Xu
Wechat/whatsapp: 008615057546776
Email: emma.vac(at)cnruibao.cn
How to get quotation and process order
What information from client is neccessory for correct quotation?
1. What is your tray size?
2. Which function do you need?
* Function 1. vacuum+O2/N2/CO2 mixing and filling+seal
* Function 2. Vacuum+nitrogen fill+seal
* Function 3. Seal directly without vacuum or nitronge filling.
Does client need send samples?
Yes. We need sample before and after get machine ready.
* Before production. Require tray sample and its drawing, so that to customize mold.
* After machine ready. If client can send at least 100pcs trays+film sample for each tray size, we will test and adjust machine, so that to make sure machine is under good condition and it parameter set ready set for your trays. This is important to handle before shipment.
Shipment term?
1. We ship under FOB or CIF by sea usually.
2. If client require DDP or DDU, please offer details address, we will offer accordinlgy.
Payment?
40% prepayment before production, balance before shipment.
* We will advice minimun film width after prepayment.
* After factory test the machine, we offer running video and picture for confirm. Then client arrange balance.
Lead time?
After prepayment, and getting tray sample/drawing, it need about 30-45days.
Do you test machine before shipment?
We will test machine and make sure machine under good condition before shipment.
After sale service?
If there's any problem, just offer videos, pictures of all touch screen pages, we will study and guide online. Usually problem can be solved this way.
If neccessory, our engineer is ready to fly oversea.
