Modified atmosphere bowl tray sealer/Automatic Plastic Meal Food Salad Tray Sealer
1. Introduction of Automatic Plastic Meal Food Salad Tray Sealer
This Modified atmosphere packaging machine will make the trays/bowls without air and become vacuum condition, filling certain proportion of mixed gas (nitrogen, oxygen, carbon dioxide) into the packaging of food for preservation effectively protected. Advanced design, well-produced, stable performance, convenient operation, wide application scope. Widely used in packaging food, medicine, native products, chemical products, etc. To prevent oxidation, mildew, moistureproof, with good quality, extend the storage period of products. This machine is equipped with a computer screen, easy to adjust the parameters, time, easy to operate. Modified atmosphere technology is on the basis of the original food fresh to inhibit the respiration of food by nitrogen preservation, slow metabolism process make food dormant. Keep food original nutritional value and fresh state.
2. Features of Automatic Plastic Meal Food Salad Tray Sealer
1. Japan PLC programmable controller, Japan and the power switch.
2. Japan color film photoelectric tracking read color calibration sensor recognizer and white film distance positioning devices, Japan and the right orientation of magnetic switch.
3. Japan omron temperature controller to realize automatic control temperature accurately.
4. Vacuum and pneumatic controller for Japanese omron.
5. Mold aluminum magnesium alloys.
6. Adopts full stainless steel material type gear cutter, durable not easy to damage.
7. The machine adopts automatic into a mold, automatic vacuum, filling, sealing, cutting film, ShouFei membrane, automatic mold, artificial out of the box.
8. The whole machine is made of stainless steel and aluminum manufacturing, under the food hygienic requirements.
9. The main control unit belongs to the German imports.
3. Technical parameter of Automatic Plastic Meal Food Salad Tray Sealer
Model | VLD-QT-2 | VLD-QT-4 | VLD-QT-6 |
Motor | 1.5kw | 3.0kw | 4.5kw |
Vacuum tank volumn | 20 M3/H | 40 M3/H | 40 M3/H |
Packing speed | 3-5 times/min | 3-5 times/min | 3-5 times/min |
Working air pressure | 0.6-0.8 MPa | 0.6-0.8 MPa | 0.6-0.8 MPa |
Air change rate | >=99% | >=99% | >=99% |
Capacity | 2pcs/time | 4pcs/time | 6pcs/time |
Machine weight | 360kg | 420kg | 450kg |
Machine size | 940*960*1700mm | 940*1085*1700mm | 970*1120*1700mm |

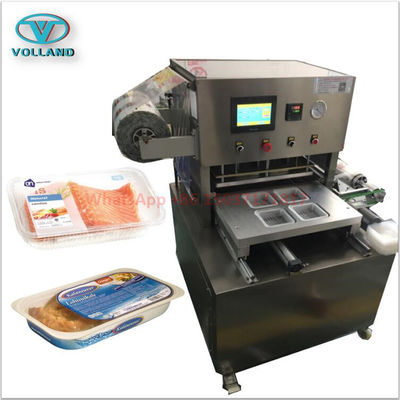

4. Photos of Automatic Plastic Meal Food Salad Tray Sealer
5. Final Products
♦ Project Design
Assist you to choose equipment, design production process flow According to the customer actual production environment and production requirements.
♦ Installation Training
Provide telephone guidance for equipment installation and debugging; or send technician to install and debug machine and train your workers if needed.
Provide free relevant training as customer required.
Long-term technical support.
♦ After-sale service
One year warranty, life-long maintenance;
24 hours online for technical consulting service;
Once Problems on equipment, provide phone or on-site troubleshooting fault response plan.
♦ One year warranty time
From the date which the product is qualified commissioning. Any damage except the wrong operation during warranty period is repaired freely. But the travel and hotel expenses should be paid by buyer.
♦ Oversea service
Q1: What is your machine guarantee?
A1: Normally the guarantee period is 1 year, and we will keep contact with our customers for after-sales service. We're aim to produce better machines and let our customers be satisfied.
Q2: How can I get quotation?
A2: Send your requirements and leave your email, we will send you quotation soon.
Q3: If we have problems when using your machine, what should we do?
A3: If you have any problem, just contact us, we will help you to solve it, and if necessary, we will arrange our engineers to help you in your country.
Q4: What about the shipping methods?
A4: For urgent order and light weight, you can choose express: FedEx, TNT, DHL or EMS; for heavy weight, you can choose by air or by sea to save cost.
Q5: What’s your delivery time?
A5: Usually we produce within 7-15days after the payment confirmed. It is also depend on the machines, if need to customize the machine as your requirement, the producing time is longer.
Q6:Which kind of payment method you can accept?
A6: T/T. Western Union, L/C.
