Features

Specifications

Type: SEALING MACHINE

Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop

Showroom Location: None

Condition: New

Application: Food

Packaging Type: Film, Case, Tray

Packaging Material: Plastic, Paper, Metal, Wood

Automatic Grade: Semi-automatic

Driven Type: Electric

Voltage: 220V/110V

Dimension(L*W*H): 700*845*700(mm)

Weight: 106 KG

Warranty: 1 Year

Key Selling Points: Long Service Life

Marketing Type: New Product 2019

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Warranty Of Core Components: 3 Months

Core Components: PLC

Max Speed: 5m/min

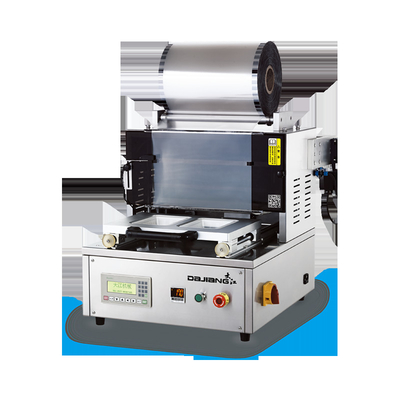

Product Name: MAP Tray Sealer

Material: 304 Stainless Steel

After Warranty Service: Online Support

After-sales Service Provided: Online Support

Certification: CE Certification

Basic Infomation

Certification: CE Certification

Payment & Shipping Terms

Packaging Details: one set per wooden case

Product Description

Technology Specification
Model	DX-1	Packing Speed(cycle/min)	6
Max Width of Film(mm)	350	Air Filling Precision(%)	≤±1
Max Diameter of Film(mm)	260	Electrical Requirement(v/Hz)	220/50
Air Exchanging Rate(%)	≥99	Machine Weight(kg)	135
Consume Power(kw)	2	Machine Dimensions(mm)	685×820×690

Scope Of Application

DX-1 MAP Tray Sealer is widely applicable to the package of raw and cooked meat, seafood, dairy product, fruit and vegetable, rice and flour food.Modified atmosphere packaging machine features quality color retention, complexion preservation assurance,keeping fresh,and taste retention.

Technical Characters

1.European gax mixer(optional).
2.French Schneider Electric parts.
3.OMRON PLC programmable control system.
4.OMRON Human-computer interface touch screen.
5.304 stainless steel main construction.
6.Fault real time prompting function.
7.Mould is available to be changed

Die Plates Available Format

Advantage of Product

304 STAINLESS STEEL BODY

DAJIANG tray sealing machine has compact designs, uses 304 stainless steel to meet the market that wants healthy, tasteful and convenient packaged in a hygienic, high-quality way.

FRIENDLY FOR USER

DAJIANG tray sealing machien is applicable to fresh-keeping packaging of all types of boxed fresh, cooked food, such as cool fresh meat, cooked meat products, fast food, pastry, rice noodle, cheese, soy products, aquatic products, poultry and other boxed foods.

IMPROVED FODD SAFETY

Tray sealing helps improve food safety by providing a strong airtight seal that prevents contamination. The air tight seal prevents dirt and moisture from entering the container.

Extended Shelf Life

The airtight hermetic seal provided by tray sealing machines allows for modified atmosphere and vacuum packaging. MAP is a process where oxygen levels inside of a sealed package is dropped to 0%. This slows down the development of harmful aerobic bacteria that cause spoilage. And flushing with a protective gas mix, the gas in the package helps ensure that the product will stay fresh for as long as possible.
